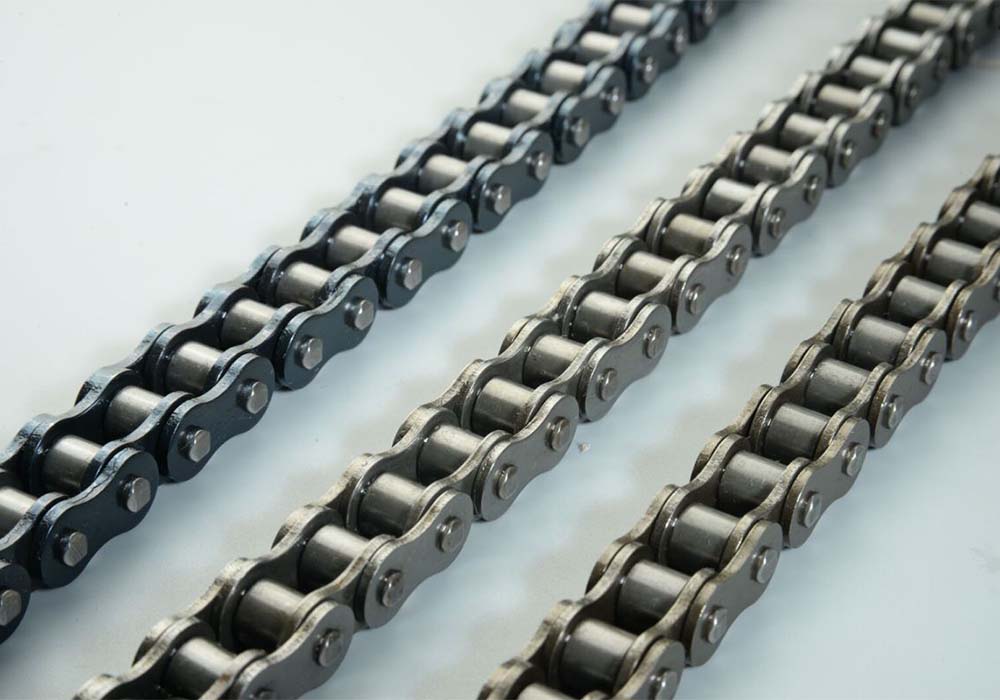

Introducción

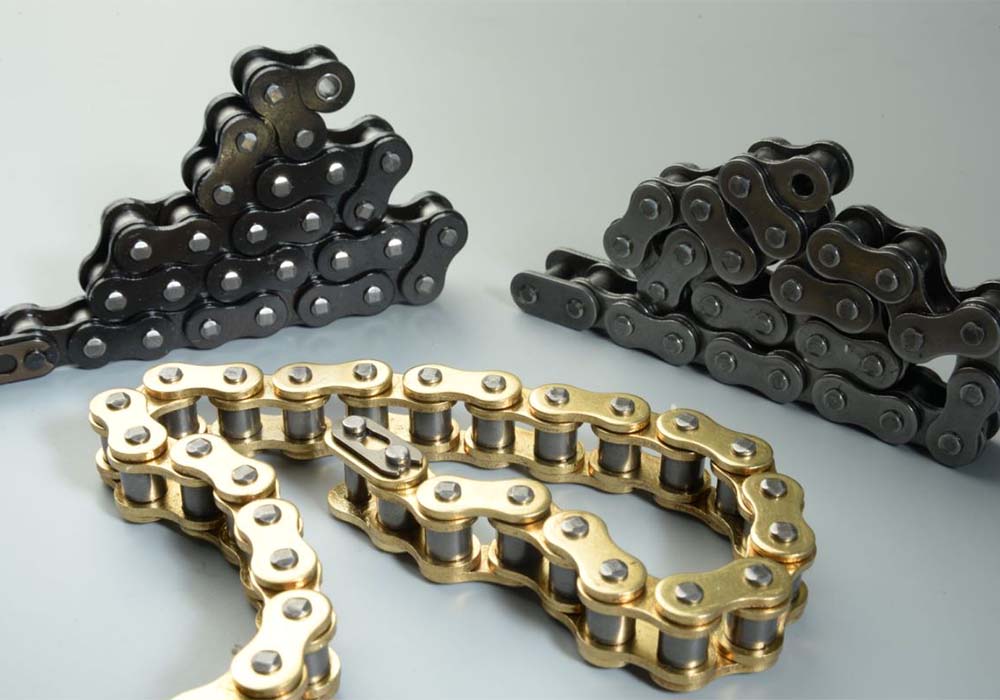

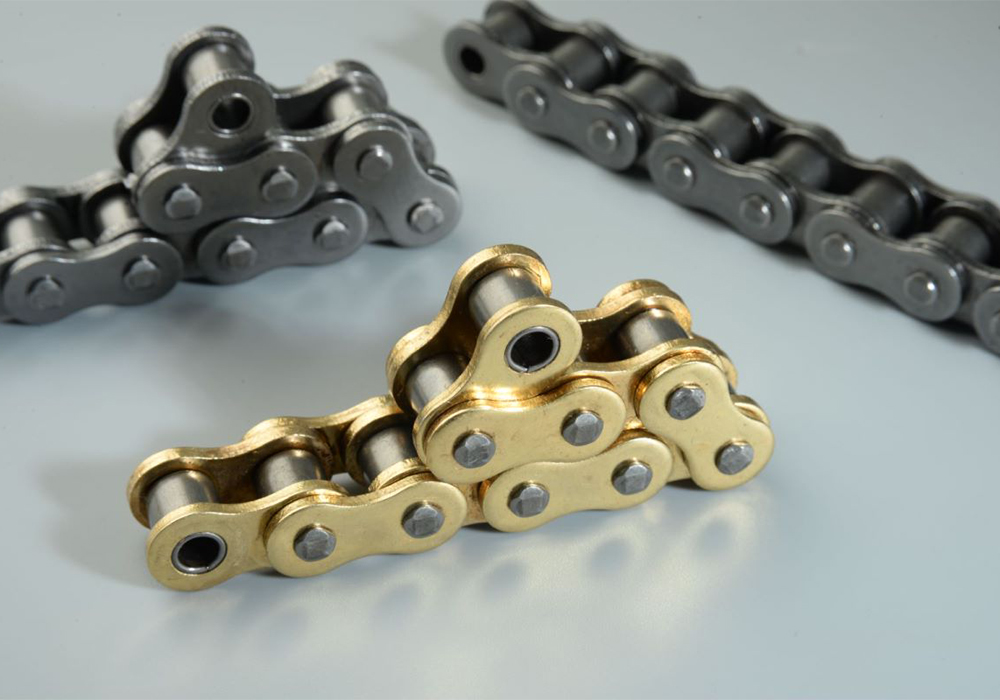

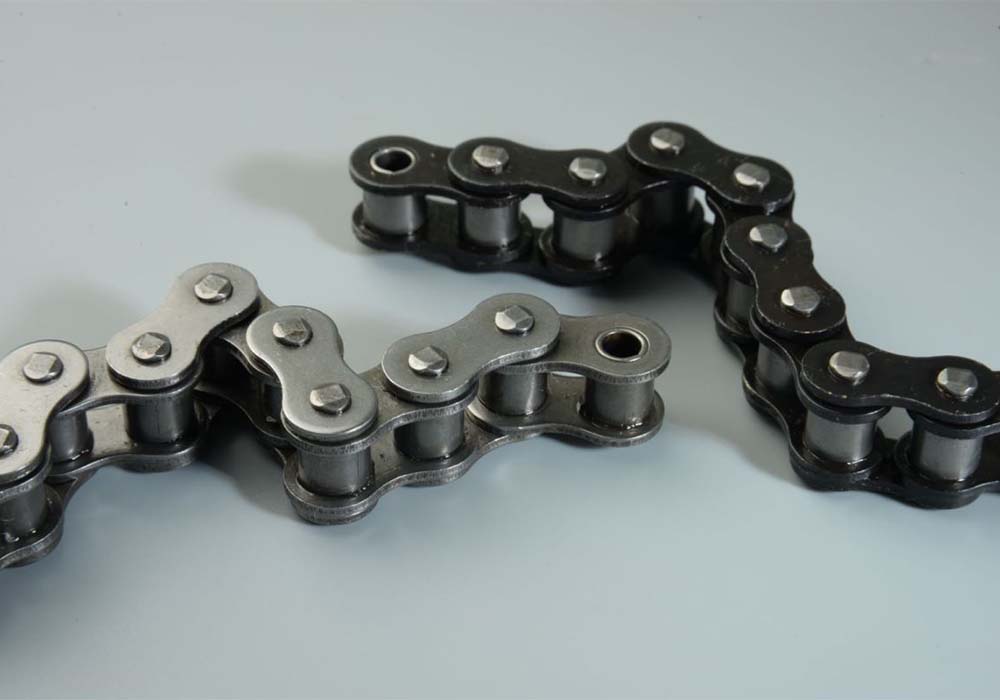

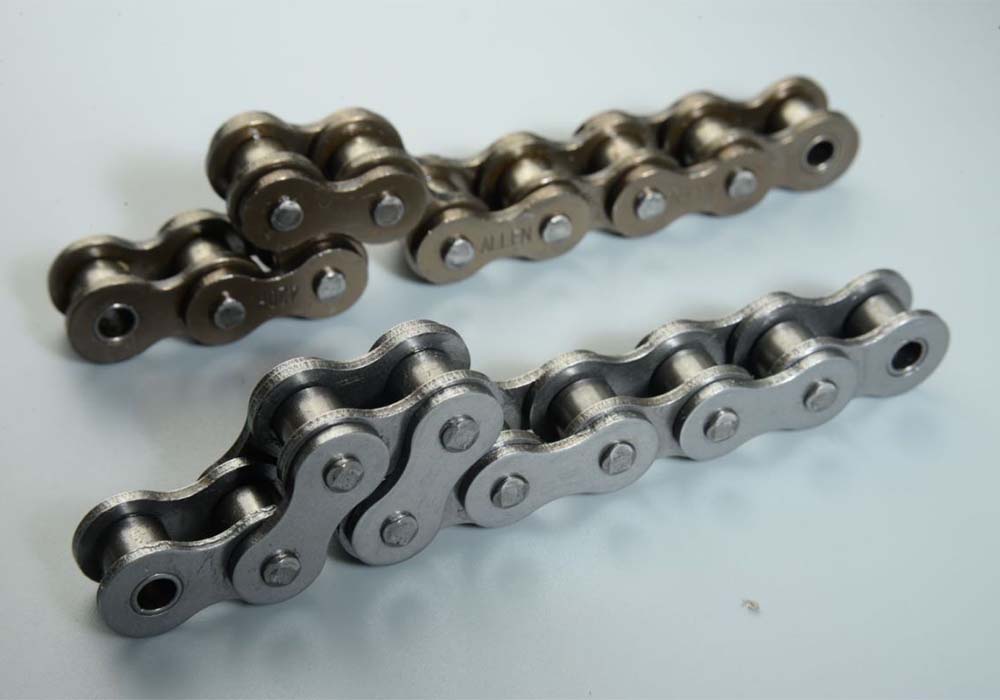

La cadena de rodillos o cadena de rodillos de buje es el tipo de transmisión por cadena más comúnmente utilizado para la transmisión de potencia mecánica en todo tipo de maquinaria doméstica, industrial y agrícola, incluyendo transportadores, máquinas de estirado de alambre y tubos, prensas de impresión, automóviles, motocicletas y bicicletas. Consiste en una serie de rodillos cilíndricos cortos mantenidos juntos por eslabones laterales. Es accionado por una rueda dentada llamada piñón. Es un medio simple, confiable y eficiente de transmisión de potencia.
Especificaciones

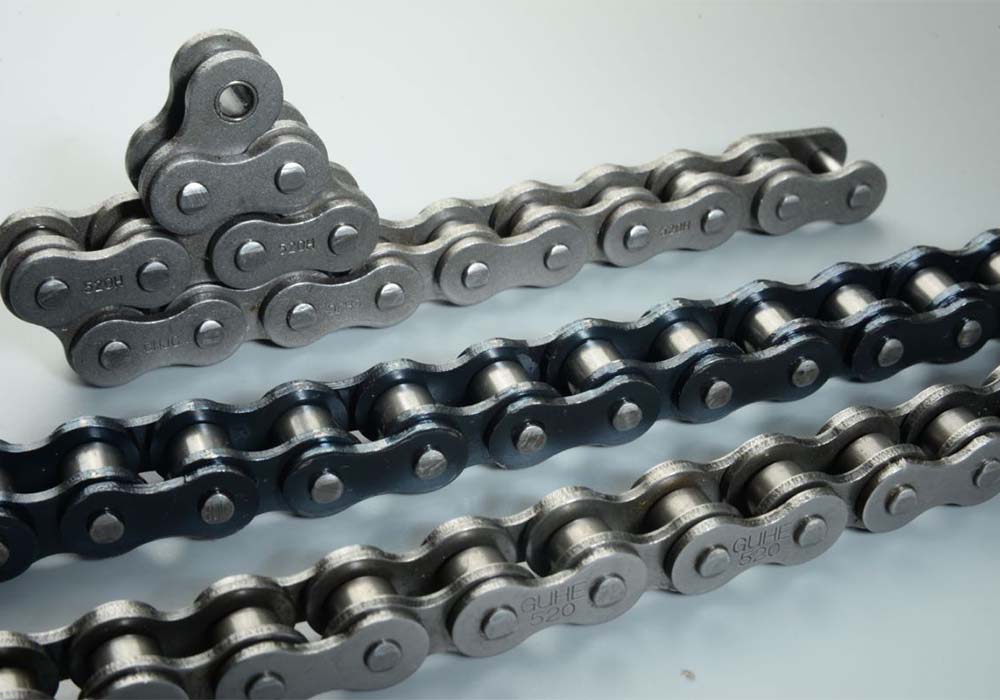

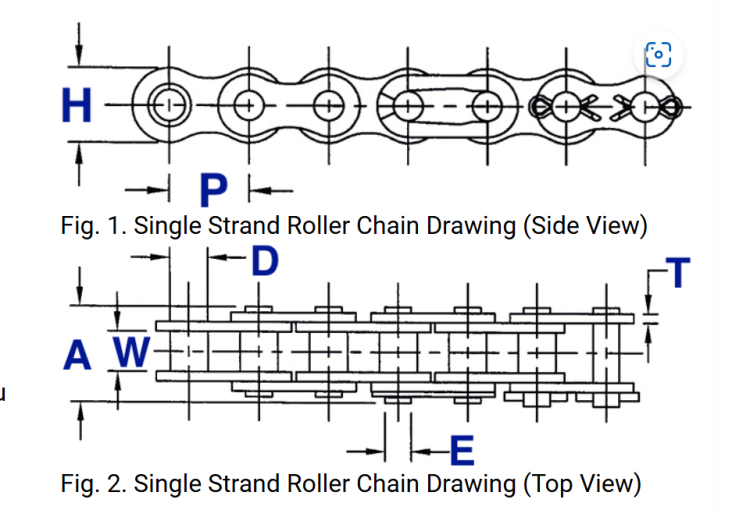

| Tabla de Tamaño de Cadena de Rodillos de Una Hilera | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia a la Tracción Ultima | Peso (Por Pie) |
| #25-1 | 0.250 in | 0.125 in | 0.130 in | 0.306 in | 0.228 in | 0.029 in | 0.091 in | 930 lbs | 0.09 lbs |
| #35-1 | 0.375 in | 0.188 in | 0.200 in | 0.456 in | 0.356 in | 0.050 in | 0.141 in | 2,320 lbs | 0.22 lbs |
| #40-1 | 0.500 in | 0.312 in | 0.312 in | 0.642 in | 0.475 in | 0.058 in | 0.156 in | 3,970 lbs | 0.42 lbs |
| #41-1 | 0.500 in | 0.250 in | 0.306 in | 0.522 in | 0.390 in | 0.050 in | 0.141 in | 2,760 lbs | 0.28 lbs |
| #50-1 | 0.625 in | 0.375 in | 0.400 in | 0.794 in | 0.594 in | 0.079 in | 0.200 in | 6,620 lbs | 0.68 lbs |
| #60-1 | 0.750 in | 0.500 in | 0.469 in | 0.994 in | 0.712 in | 0.093 in | 0.234 in | 9,270 lbs | 0.97 lbs |
| #80-1 | 1.000 in | 0.625 in | 0.625 in | 1.290 in | 0.950 in | 0.125 in | 0.312 in | 16,540 lbs | 1.71 lbs |
| #100-1 | 1.250 in | 0.750 in | 0.750 in | 1.578 in | 1.188 in | 0.157 in | 0.375 in | 25,360 lbs | 2.65 lbs |
| #120-1 | 1.500 in | 1.000 in | 0.875 in | 1.966 in | 1.425 in | 0.189 in | 0.437 in | 32,640 lbs | 3.79 lbs |
| #140-1 | 1.750 in | 1.000 in | 1.000 in | 2.132 in | 1.663 in | 0.219 in | 0.500 in | 45,210 lbs | 4.96 lbs |
| #160-1 | 2.000 in | 1.250 in | 1.125 in | 2.564 in | 1.901 in | 0.255 in | 0.563 in | 57,780 lbs | 6.32 lbs |
| #180-1 | 2.250 in | 1.406 in | 1.406 in | 2.808 in | 2.130 in | 0.283 in | 0.687 in | 80,480 lbs | 9.04 lbs |
| #200-1 | 2.500 in | 1.500 in | 1.562 in | 3.160 in | 2.376 in | 0.312 in | 0.782 in | 109,150 lbs | 10.31 lbs |
| #240-1 | 3.000 in | 1.875 in | 1.875 in | 3.772 in | 2.850 in | 0.375 in | 0.937 in | 152,140 lbs | 16.40 lbs |

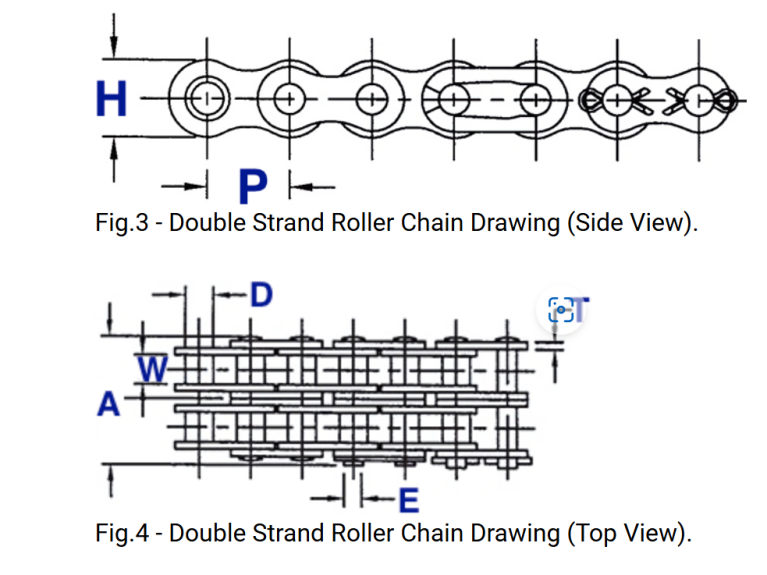

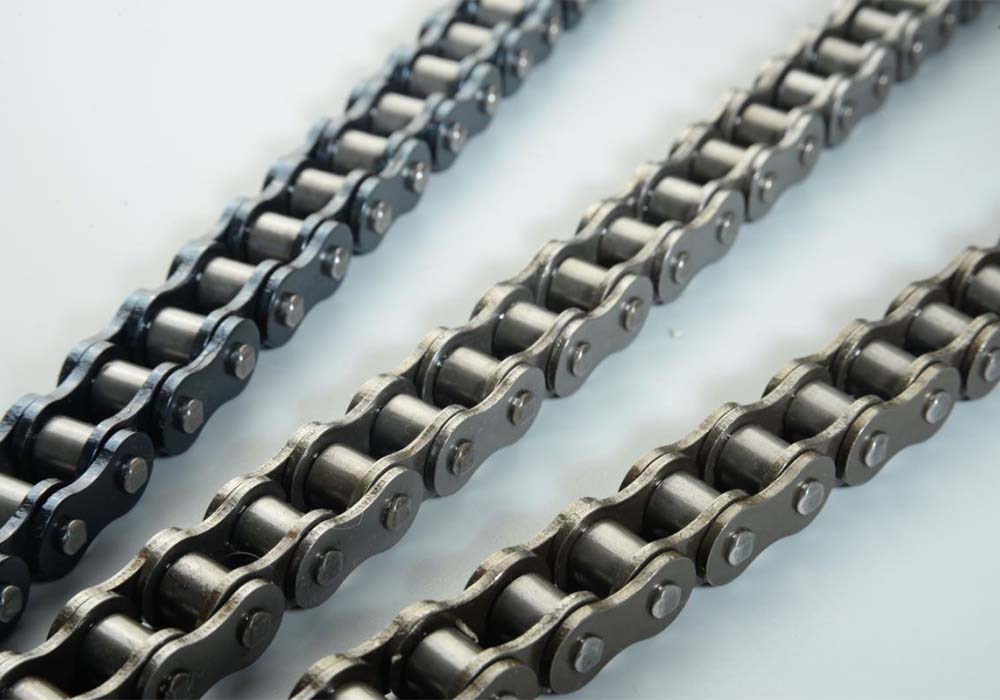

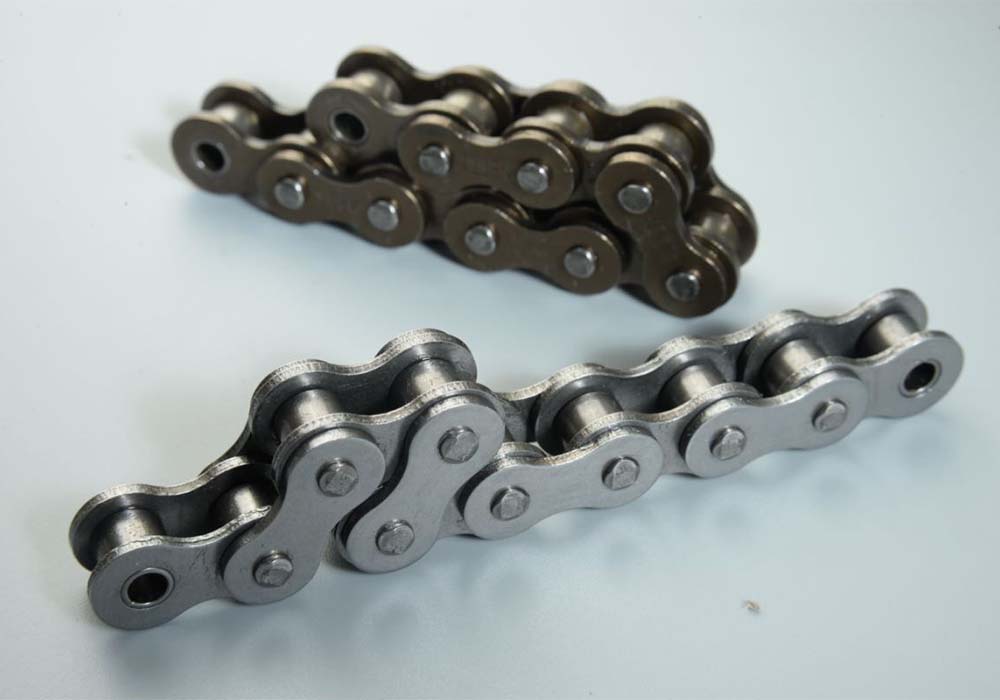

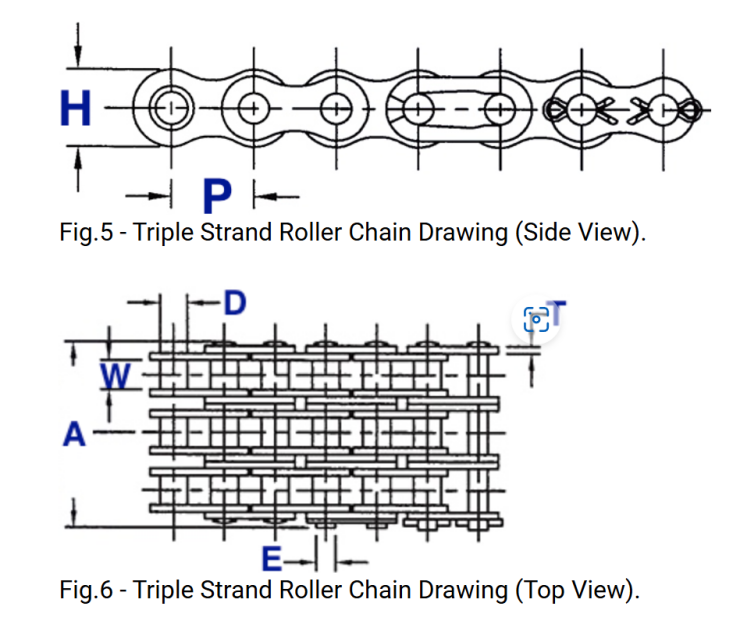

| Tabla de Tamaño de Cadena de Rodillos de Doble Cordón | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia Ultima Promedio | Peso (Por Pie) |
| #25-2 | 0.250' | 0.125' | 0.130' | 0.590' | 0.230' | 0.030' | 0.091' | 1,700 LBS | 0.19 LBS |
| #35-2 | 0.375' | 0.188' | 0.200' | 0.876' | 0.356' | 0.050' | 0.141' | 4,640 LBS | 0.46 LBS |
| #40-2 | 0.500' | 0.312' | 0.312' | 1.212' | 0.475' | 0.058' | 0.156' | 7,500 LBS | 0.85 LBS |
| #50-2 | 0.625' | 0.375' | 0.400' | 1.504' | 0.594' | 0.079' | 0.200' | 13,230 LIBRAS | 1.37 LIBRAS |
| #60-2 | 0.750' | 0.500' | 0.469' | 1.890' | 0.712' | 0.093' | 0.234' | 18,530 LIBRAS | 2.04 LIBRAS |
| #80-2 | 1.000' | 0.625' | 0.625' | 2.440' | 0.950' | 0.125' | 0.312' | 33,080 LIBRAS | 3.41 LIBRAS |
| #100-2 | 1.250' | 0.750' | 0.750' | 2.986' | 1.188' | 0.157' | 0.375' | 50,720 LBS | 5.28 LBS |
| #120-2 | 1.500' | 1.000' | 0.875' | 3.776' | 1.425' | 0.189' | 0.437' | 65,270 LBS | 7.88 LBS |
| #140-2 | 1.750' | 1.000' | 1.000' | 4.058' | 1.663' | 0.219' | 0.500' | 90,410 LIBRAS | 10.03 LIBRAS |
| #160-2 | 2.000' | 1.250' | 1.125' | 4.900' | 1.901' | 0.255' | 0.563' | 115,550 LIBRAS | 13.48 LIBRAS |
| #180-2 | 2.250' | 1.406' | 1.406 | 5.414' | 2.130' | 0.283' | 0.687' | 160,960 LIBRAS | 17.65 LBS |
| #200-2 | 2.500' | 1.501' | 1.562' | 5.980' | 2.376' | 0.312' | 0.782' | 218,300 LBS | 21.95 LBS |
| #240-2 | 3.000' | 1.875' | 1.875' | 7.236' | 2.850' | 0.375' | 0.937 | 304,280 LBS | 32.45 LBS |
| Tabla de Tamaños de Cadena de Rodillos de Triple Cordón | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia Ultima Promedio | Peso (Por Pie) |
| #25-3 | 0.250' | 0.125' | 0.091' | 0.860' | 0.230' | 0.030' | 0.091' | 2,790 LBS | 0.27 LBS |
| #35-3 | 0.375' | 0.188' | 0.200' | 1.262' | 0.356' | 0.050' | 0.141' | 6,950 LBS | 0.70 LBS |
| #40-3 | 0.500' | 0.312' | 0.312' | 1.776' | 0.475' | 0.058' | 0.156' | 11,250 LBS | 1.27 LBS |
| #50-3 | 0.625' | 0.375' | 0.400' | 2.222' | 0.594' | 0.079' | 0.200' | 19,850 LBS | 2.05 LBS |
| #60-3 | 0.750' | 0.500' | 0.469' | 2.794' | 0.712' | 0.093' | 0.234' | 27,790 LBS | 3.02 LBS |
| #80-3 | 1.000' | 0.625' | 0.625' | 3.582' | 0.950' | 0.125' | 0.312' | 49,620 LIBRAS | 5.10 LIBRAS |
| #100-3 | 1.250' | 0.750' | 0.750' | 4.396' | 1.188' | 0.157' | 0.375' | 76,080 LIBRAS | 7.92 LIBRAS |
| #120-3 | 1.500' | 1.000' | 0.875' | 5.546' | 1.425' | 0.189' | 0.437' | 97,910 LIBRAS | 11.80 LIBRAS |
| #140-3 | 1.750' | 1.000' | 1.000' | 6.010' | 1.663' | 0.219' | 0.500' | 135,610 LIBRAS | 15.00 LIBRAS |
| #160-3 | 2.000' | 1.250' | 1.125' | 7.200' | 1.901' | 0.255' | 0.563' | 173,320 LIBRAS | 20.20 LIBRAS |
| #200-3 | 2.500' | 1.501' | 1.562' | 8.798' | 2.376' | 0.312' | 0.782' | 327,450 LIBRAS | 32.72 LIBRAS |
| #240-3 | 3.000' | 1.875' | 1.875' | 10.696' | 2.850' | 0.375' | 0.937 | 456,420 LIBRAS | 48.19 LIBRAS |

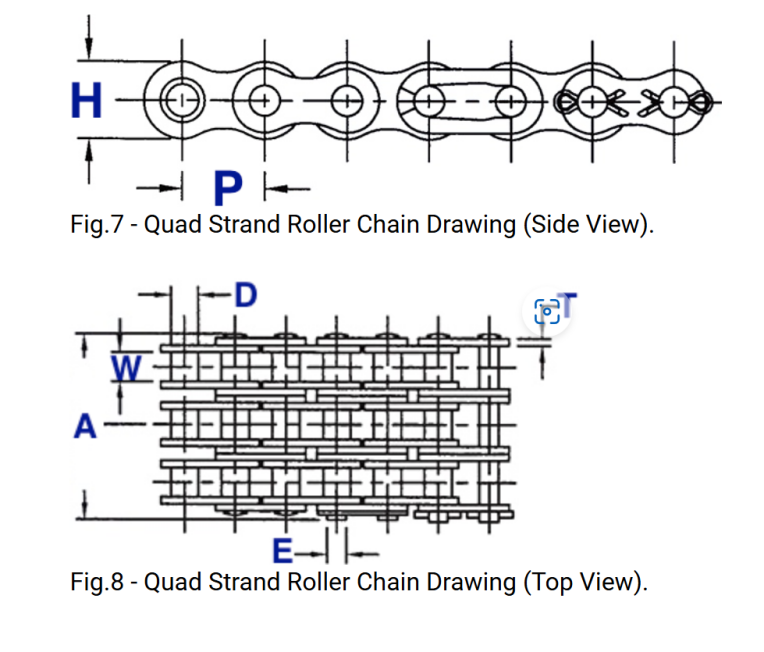

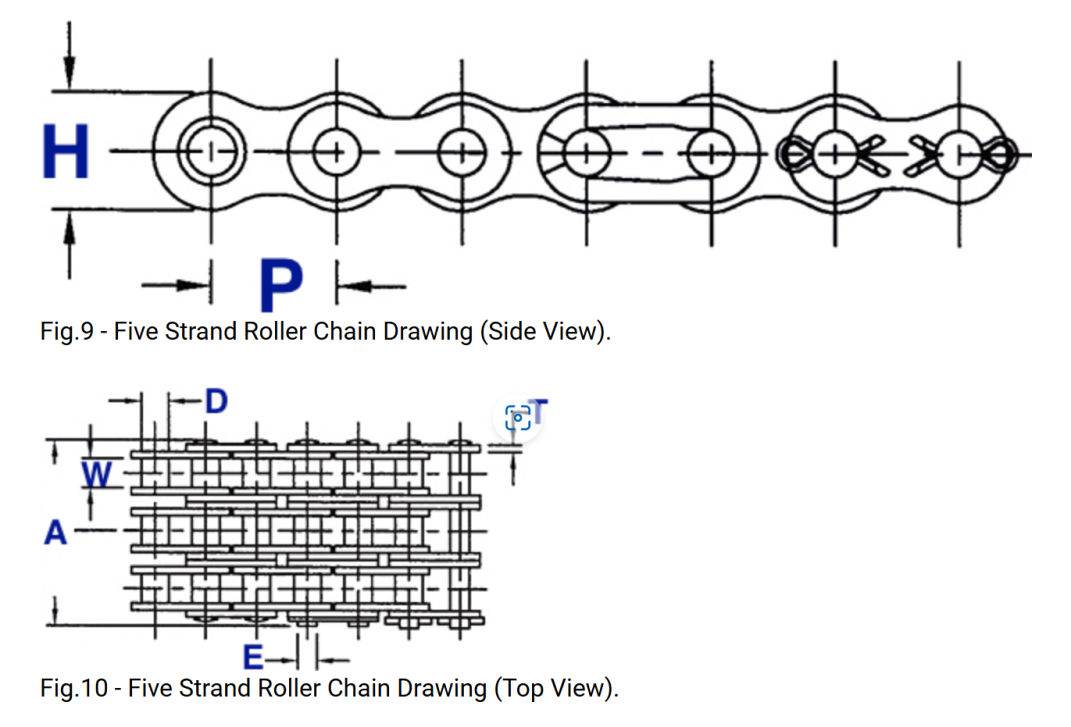

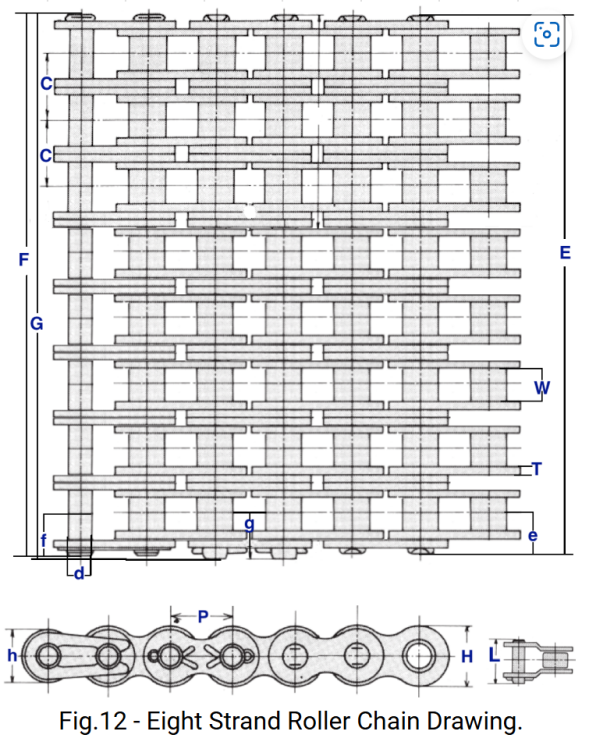

| Tabla de Tamaños de Cadena de Rodillos de Cuatro Hilos | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia Ultima Promedio | Peso (Por Pie) |
| #25-4 | 0.250' | 0.125' | 0.130' | 1.070' | 0.232' | 0.028' | 0.091' | 3,350 LIBRAS | 0.35 LIBRAS |
| #35-4 | 0.375' | 0.188' | 0.200' | 1.713' | 0.354' | 0.049' | 0.141' | 10,120 LIBRAS | 0.82 LIBRAS |
| #40-4 | 0.500' | 0.312' | 0.312' | 2.342' | 0.475' | 0.058' | 0.156' | 15,000 LBS | 1.60 LBS |
| #50-4 | 0.625' | 0.375' | 0.400' | 2.962' | 0.594' | 0.079' | 0.200' | 26,460 LBS | 2.72 LBS |
| #60-4 | 0.750' | 0.500' | 0.469' | 3.690' | 0.712' | 0.093' | 0.234' | 37,050 LBS | 3.97 LBS |
| #80-4 | 1.000' | 0.625' | 0.625' | 4.776' | 0.950' | 0.125' | 0.312' | 66,150 LBS | 6.75 LBS |
| #100-4 | 1.250' | 0.750' | 0.750' | 5.806' | 1.188' | 0.157' | 0.375' | 101,430 LBS | 10.27 LBS |
| #120-4 | 1.500' | 1.000' | 0.875' | 7.336' | 1.425' | 0.189' | 0.437' | 130,540 LBS | 14.97 LBS |
| #140-4 | 1.750' | 1.000' | 1.000' | 7.894' | 1.650' | 0.220' | 0.500' | 193,600 LBS | 19.6 LBS |
| #160-4 | 2.000' | 1.250' | 1.125' | 9.421' | 1.882' | 0.252' | 0.563' | 242,000 LBS | 26.0 LBS |
| #200-4 | 2.500' | 1.500' | 1.562' | 11.531' | 2.362' | 0.315' | 0.781' | 422,400 LBS | 43.25 LBS |
| #240-4 | 3.000' | 1.875' | 1.875' | 14.122' | 2.815' | 0.374' | 0.937' | 616,000 LBS | 61.22 LBS |
| Tabla de Tamaños de Cadena de Rodillos de Cinco Hilos | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia Ultima Promedio | Peso (Por Pie) |
| #40-5 | 0.500' | 0.312' | 0.312' | 2.98' | 0.475' | 0.058' | 0.156' | 21,450 LBS | 2.11 LBS |
| #50-5 | 0.625' | 0.375' | 0.400' | 3.70' | 0.594' | 0.079' | 0.200' | 34,650 LBS | 3.37 LBS |
| #60-5 | 0.750' | 0.500' | 0.469' | 4.65' | 0.712' | 0.093' | 0.234' | 49,500 LBS | 4.97 LBS |
| #80-5 | 1.000' | 0.625' | 0.625' | 6.02' | 0.950' | 0.125' | 0.312' | 88,000 LBS | 8.60 LBS |
| #100-5 | 1.250' | 0.750' | 0.750' | 7.35' | 1.188' | 0.157' | 0.375' | 133,100 LBS | 12.9 LBS |
| #120-5 | 1.500' | 1.000' | 0.875' | 9.27' | 1.425' | 0.189' | 0.437' | 187,000 LBS | 19.2 LBS |
| #140-5 | 1.750' | 1.000' | 1.000' | 10.02' | 1.663' | 0.219' | 0.500' | 242,000 LBS | 24.4 LBS |
| #160-5 | 2.000' | 1.250' | 1.125' | 11.94' | 1.901' | 0.255' | 0.563' | 302,500 LBS | 32.5 LBS |
| #200-5 | 2.500' | 1.501' | 1.562' | 14.72' | 2.376' | 0.312' | 0.782' | 528,000 LBS | 56.4 LBS |
| Gráfico de Tamaño de Cadena de Rodillos de Seis Hilos | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia Ultima Promedio | Peso (Por Pie) |
| Jun-35 | 0.375' | 0.188' | 0.200' | 2.50' | 0.354' | 0.050' | 0.141' | 14,000 LBS | 1.27 LBS |
| Jun-40 | 0.500' | 0.312' | 0.312' | 2.98' | 0.475' | 0.058' | 0.156' | 21,450 LBS | 2.11 LBS |
| Jun-50 | 0.625' | 0.375' | 0.400' | 3.70' | 0.594' | 0.079' | 0.200' | 34,650 LBS | 3.37 LBS |
| Jun-60 | 0.750' | 0.500' | 0.469' | 4.65' | 0.712' | 0.093' | 0.234' | 49,500 LBS | 4.97 LBS |
| Jun-80 | 1.000' | 0.625' | 0.625' | 6.02' | 0.950' | 0.125' | 0.312' | 88,000 LBS | 8.60 LBS |
| 100-6 | 1.250' | 0.750' | 0.750' | 7.35' | 1.188' | 0.157' | 0.375' | 133,100 LBS | 12.9 LBS |
| 120-6 | 1.500' | 1.000' | 0.875' | 9.27' | 1.425' | 0.189' | 0.437' | 187,000 LBS | 19.2 LBS |
| 140-6 | 1.750' | 1.000' | 1.000' | 10.02' | 1.663' | 0.219' | 0.500' | 242,000 LBS | 24.4 LBS |
| 160-6 | 2.000' | 1.250' | 1.125' | 11.94' | 1.901' | 0.255' | 0.563' | 302,500 LBS | 32.5 LBS |
| 180-6 | 2.250' | 1.402' | 1.406' | 16.04' | 2.067' | 0.283' | 0.687' | 480,000 LBS | 53.3 LBS |
| 200-6 | 2.500' | 1.500' | 1.562' | 17.54' | 2.354' | 0.315' | 0.781' | 630,000 LBS | 67.7 LBS |
| 240-6 | 3.000' | 1.875' | 1.875' | 21.38' | 2.768' | 0.374' | 0.936' | 910,000 LBS | 94.6 LBS |
| Gráfico de Tamaño de Cadena de Rodillo de Ocho Hilos | ||||||||||||
| Cadena# | Paso (P) | (W) | (D) | (d) | (e) | (f) | (g) | (C) | (T) | (H) | (h) | Peso (LBS/ FT) |
| Ago-40 | 0.500' | 0.313' | 0.312' | 0.156' | 0.327' | 0.374' | 0.398' | 0.567' | 0.059' | 0.472' | 0.409' | 3.18 |
| Ago-50 | 0.625' | 0.375' | 0.400' | 0.2 | 0.402' | 0.457' | 0.476' | 0.713' | 0.079' | 0.591' | 0.512' | 5.44 |
| ago-60 | 0.750' | 0.500' | 0.469' | 0.235' | 0.500' | 0.563' | 0.594' | 0.898' | 0.094' | 0.713' | 0.614' | 8.08 |
| ago-80 | 1.000' | 0.625' | 0.625' | 0.313' | 0.646' | -- | 0.748' | 1.154' | 0.126' | 0.945' | 0.819' | 13.54 |
| 100-8 | 1.250' | 0.750' | 0.750' | 0.376' | 0.780' | -- | 0.894' | 1.409' | 0.157' | 1.177' | 1.024' | 20.26 |
| 120-8 | 1.500' | 1.000' | 0.875' | 0.437' | 0.980' | -- | 1.110' | 1.787' | 0.189' | 1.413' | 1.228' | 29.5 |
| 140-8 | 1.750' | 1.000' | 1.000' | 0.500' | 1.055' | -- | 1.248' | 1.925' | 0.220' | 1.650' | 1.429' | 37.68 |
| 160-8 | 2.000' | 1.250' | 1.125' | 0.563' | 1.256' | -- | 1.437' | 2.303' | 0.252' | 1.882' | 1.630' | 51.76 |
| 180-8 | 2.250' | 1.406' | 1.406' | 0.687' | 1.409' | -- | 1.638' | 2.591' | 0.280' | 2.118' | 1.835' | 66.52 |
| 200-8 | 2.500' | 1.500' | 1.562' | 0.781' | 1.535' | -- | 1.811' | 2.819' | 0.315' | 2.362' | 2.047' | 86.5 |
| 240-8 | 3.000' | 1.875' | 1.875' | 0.937' | 1.878' | -- | 2.177' | 3.457' | 0.374' | 2.815' | 2.441' | 122.44 |

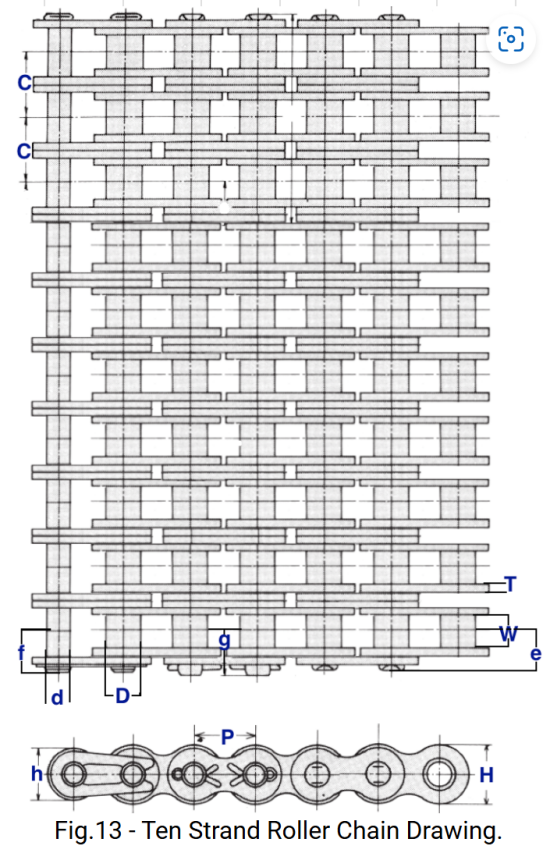

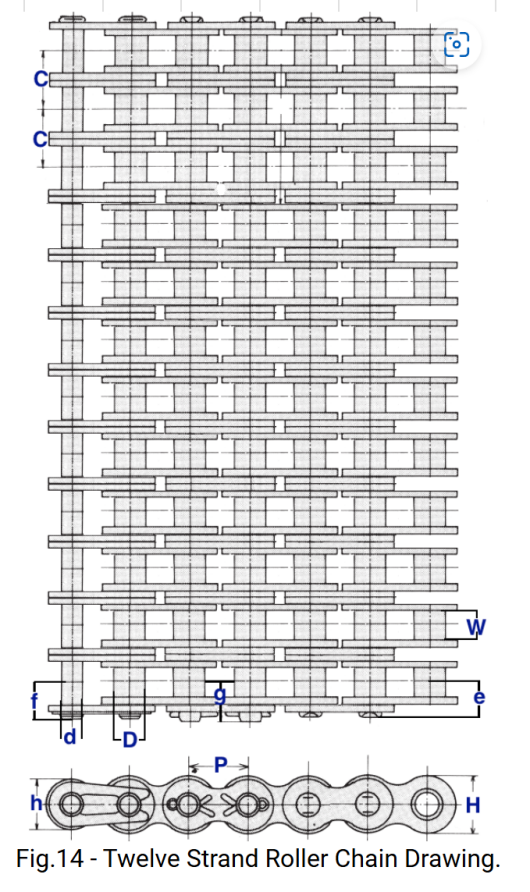

| Tabla de Tamaños de Cadena de Diez Hilos | ||||||||||||
| Cadena# | Paso (P) | (W) | (D) | (d) | (e) | (f) | (g) | (C) | (T) | (H) | (h) | Peso (LBS/ FT) |
| Oct-40 | 0.500' | 0.313' | 0.312' | 0.156' | 0.327' | 0.374' | 0.398' | 0.567' | 0.059' | 0.472' | 0.409' | 3.92 |
| Oct-50 | 0.625' | 0.375' | 0.400' | 0.2 | 0.402' | 0.457' | 0.476' | 0.713' | 0.079' | 0.591' | 0.512' | 6.83 |
| Oct-60 | 0.750' | 0.500' | 0.469' | 0.235' | 0.500' | 0.563' | 0.594' | 0.898' | 0.094' | 0.713' | 0.614' | 10.05 |
| Oct-80 | 1.000' | 0.625' | 0.625' | 0.313' | 0.646' | -- | 0.748' | 1.154' | 0.126' | 0.945' | 0.819' | 16.92 |
| 100-10 | 1.250' | 0.750' | 0.750' | 0.376' | 0.780' | -- | 0.894' | 1.409' | 0.157' | 1.177' | 1.024' | 24.92 |
| 120-10 | 1.500' | 1.000' | 0.875' | 0.437' | 0.980' | -- | 1.110' | 1.787' | 0.189' | 1.413' | 1.228' | 36.29 |
| 140-10 | 1.750' | 1.000' | 1.000' | 0.500' | 1.055' | -- | 1.248' | 1.925' | 0.220' | 1.650' | 1.429' | 46.35 |
| 160-10 | 2.000' | 1.250' | 1.125' | 0.563' | 1.256' | -- | 1.437' | 2.303' | 0.252' | 1.882' | 1.630' | 63.66 |
| 180-10 | 2.250' | 1.406' | 1.406' | 0.687' | 1.409' | -- | 1.638' | 2.591' | 0.280' | 2.118' | 1.835' | 81.82 |
| 200-10 | 2.500' | 1.500' | 1.562' | 0.781' | 1.535' | -- | 1.811' | 2.819' | 0.315' | 2.362' | 2.047' | 106.4 |
| 240-10 | 3.000' | 1.875' | 1.875' | 0.937' | 1.878' | -- | 2.177' | 3.457' | 0.374' | 2.815' | 2.441' | 150.6 |
| Tabla de Tamaños de Cadena de Rodillos de Doce Hilos | ||||||||||||
| Cadena# | Paso (P) | (W) | (D) | (d) | (e) | (f) | (g) | (C) | (T) | (H) | (h) | Peso (LBS/ FT) |
| Dec-40 | 0.500' | 0.313' | 0.312' | 0.156' | 0.327' | 0.374' | 0.398' | 0.567' | 0.059' | 0.472' | 0.409' | 4.71 |
| Dec-50 | 0.625' | 0.375' | 0.400' | 0.2 | 0.402' | 0.457' | 0.476' | 0.713' | 0.079' | 0.591' | 0.512' | 8.2 |
| Dec-60 | 0.750' | 0.500' | 0.469' | 0.235' | 0.500' | 0.563' | 0.594' | 0.898' | 0.094' | 0.713' | 0.614' | 12.06 |
| Dec-80 | 1.000' | 0.625' | 0.625' | 0.313' | 0.646' | -- | 0.748' | 1.154' | 0.126' | 0.945' | 0.819' | 20.31 |
| 100-12 | 1.250' | 0.750' | 0.750' | 0.376' | 0.780' | -- | 0.894' | 1.409' | 0.157' | 1.177' | 1.024' | 29.91 |
| 120-12 | 1.500' | 1.000' | 0.875' | 0.437' | 0.980' | -- | 1.110' | 1.787' | 0.189' | 1.413' | 1.228' | 43.55 |
| 140-12 | 1.750' | 1.000' | 1.000' | 0.500' | 1.055' | -- | 1.248' | 1.925' | 0.220' | 1.650' | 1.429' | 55.62 |
| 160-12 | 2.000' | 1.250' | 1.125' | 0.563' | 1.256' | -- | 1.437' | 2.303' | 0.252' | 1.882' | 1.630' | 76.39 |
| 180-12 | 2.250' | 1.406' | 1.406' | 0.687' | 1.409' | -- | 1.638' | 2.591' | 0.280' | 2.118' | 1.835' | 98.19 |
| 200-12 | 2.500' | 1.500' | 1.562' | 0.781' | 1.535' | -- | 1.811' | 2.819' | 0.315' | 2.362' | 2.047' | 127.68 |
| 240-12 | 3.000' | 1.875' | 1.875' | 0.937' | 1.878' | -- | 2.177' | 3.457' | 0.374' | 2.815' | 2.441' | 180.72 |

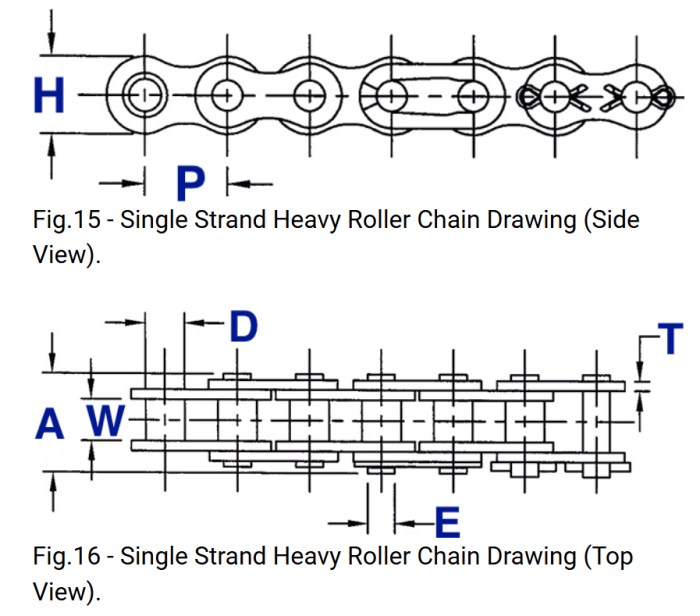

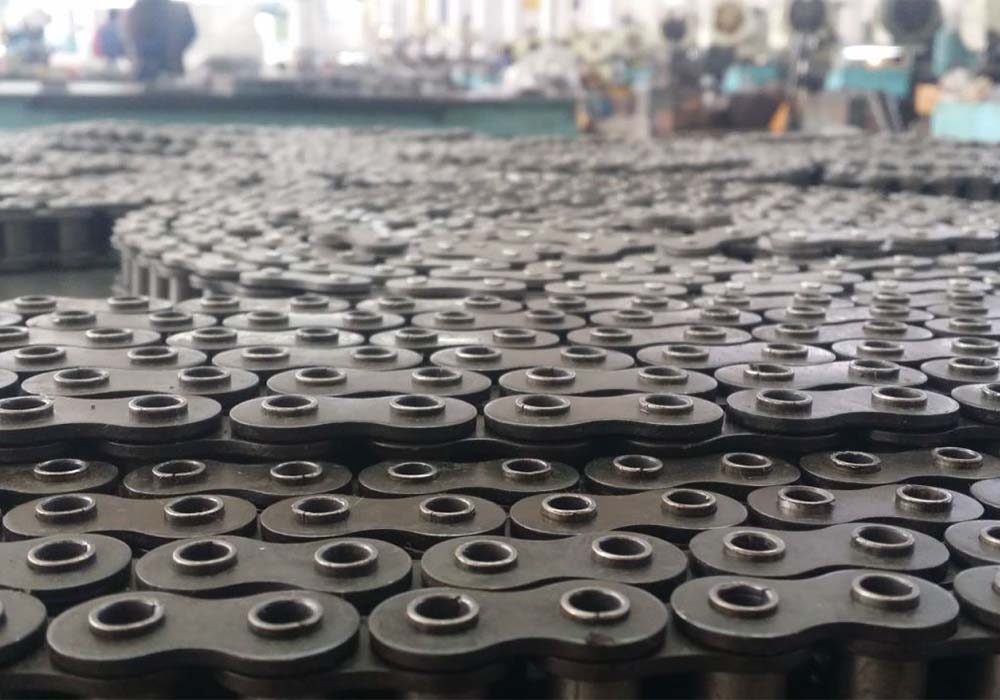

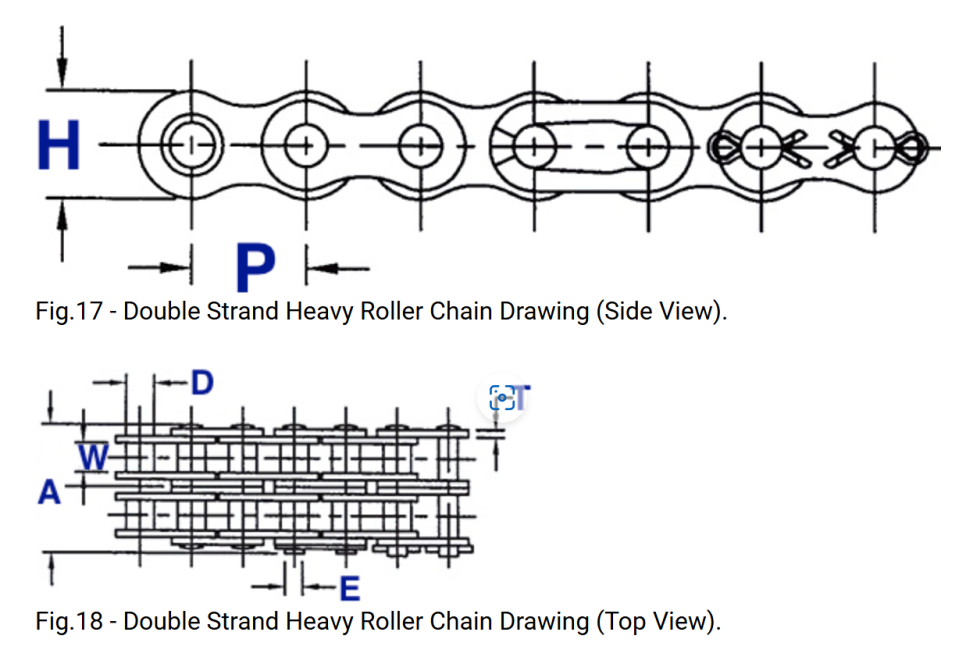

| Tabla de Tamaños de Cadena para Rodillo Pesado | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | Ancho Total (A) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Resistencia Ultima Promedio | Peso (Por Pie) |
| #25H | 0.250' | 0.125' | 0.130' | 0.306' | 0.228' | 0.039' | 0.091' | 1,010 LBS | 0.12 LBS |
| #35H | 0.375' | 0.188' | 0.200' | 0.456' | 0.356' | 0.060' | 0.141' | 3,920 LBS | 0.36 LBS |
| #40H | 0.500' | 0.312' | 0.312' | 0.642' | 0.475' | 0.079' | 0.156' | 5,181 LBS | 0.59 LBS |
| #50H | 0.625' | 0.375' | 0.400' | 0.794' | 0.594' | 0.093' | 0.200' | 7,940 LBS | 0.75 LBS |
| #60H | 0.750' | 0.500' | 0.469' | 0.994' | 0.712' | 0.125' | 0.234' | 12,130 LBS | 1.20 LBS |
| #80H | 1.000' | 0.625' | 0.625' | 1.290' | 0.950' | 0.157' | 0.312' | 19,850 LBS | 1.96 LBS |
| #100H | 1.250' | 0.750' | 0.750' | 1.578' | 1.188' | 0.189' | 0.375' | 30,870 LIBRAS | 2.80 LIBRAS |
| #120H | 1.500' | 1.000' | 0.875' | 1.966' | 1.425' | 0.219' | 0.437' | 36,390 LIBRAS | 4.00 LIBRAS |
| #140H | 1.750' | 1.000' | 1.000' | 2.132' | 1.663' | 0.250' | 0.500' | 48,510 LIBRAS | 5.40 LIBRAS |
| #160H | 2.000' | 1.250' | 1.125' | 2.564' | 1.901' | 0.281' | 0.563' | 60,630 LIBRAS | 7.09 LIBRAS |
| #180H | 2.250' | 1.406' | 1.406' | 2.808' | 2.130' | 0.312' | 0.687' | 84,078 LIBRAS | 11.08 LIBRAS |
| #200H | 2.500' | 1.500' | 1.562' | 3.160' | 2.376' | 0.375' | 0.782' | 118,699 LIBRAS | 13.54 LIBRAS |
| #240H | 3.000' | 1.875' | 1.875' | 3.772' | 2.850' | 0.500' | 0.937' | 153,320 LIBRAS | 19.96 LIBRAS |
| Tabla de Tamaños de Cadena Doble de Rodillos Pesados | |||||||||
| Tamaño de la Cadena | Paso (P) | Ancho del Rodillo (W) | Diámetro del Rodillo (D) | (A) | (B) | Altura de la Placa (H) | Espesor de la Placa (T) | Diámetro del Pasador (E) | Peso (Por Pie) |
| 60-2H | 0.750' | 0.500' | 0.469' | 1.090' | 1.140' | 0.712' | 0.125' | 0.234' | 2.31 LIBRAS |
| 80-2H | 1.000' | 0.625' | 0.625' | 1.360' | 1.420' | 0.950' | 0.157' | 0.312' | 3.97 LBS |
| 100-2H | 1.250' | 0.750' | 0.750' | 1.630' | 1.736' | 1.188' | 0.187' | 0.375' | 6.07 LBS |
| 120-2H | 1.500' | 1.000' | 0.875' | 2.014' | 2.171' | 1.425' | 0.219' | 0.437' | 8.67 LBS |
| 140-2H | 1.750' | 1.000' | 1.000' | 2.163' | 2.343' | 1.663' | 0.250' | 0.500' | 11.01 LBS |
| 160-2H | 2.000' | 1.250' | 1.125' | 2.555' | 2.736' | 1.901' | 0.281' | 0.563' | 14.64 LBS |
| 200-2H | 2.500' | 1.501' | 1.562' | 3.230' | 3.437' | 2.376' | 0.375' | 0.782' | 24.51 LBS |

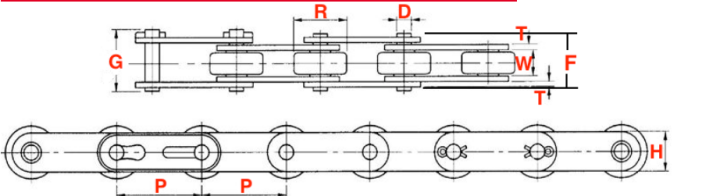

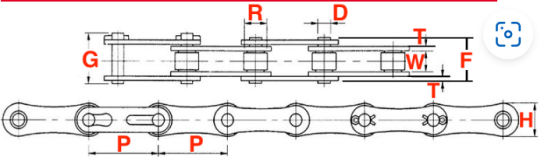

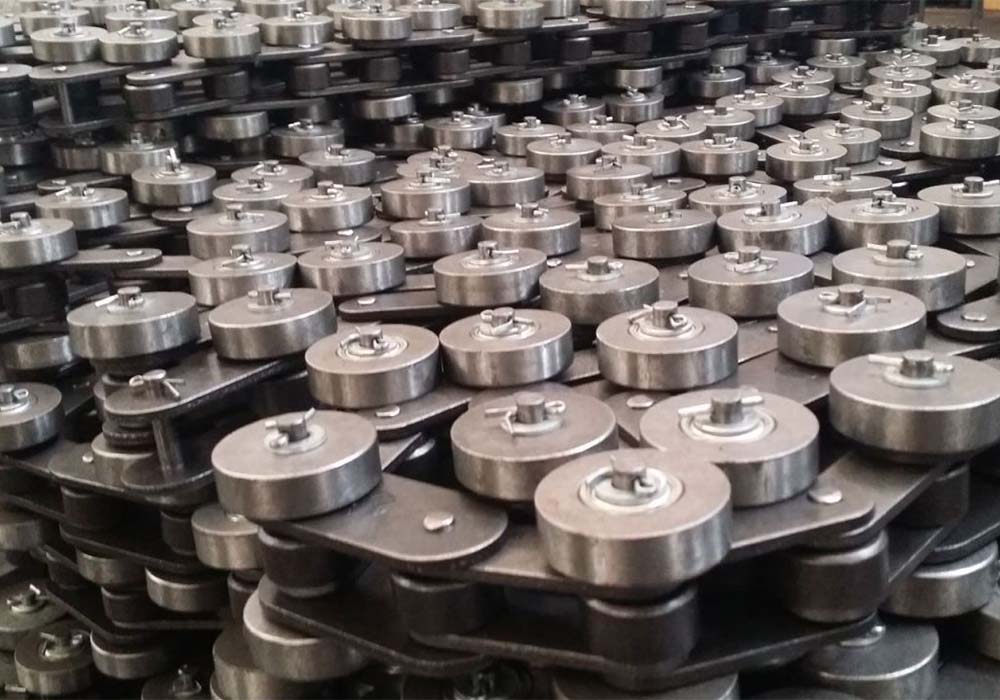

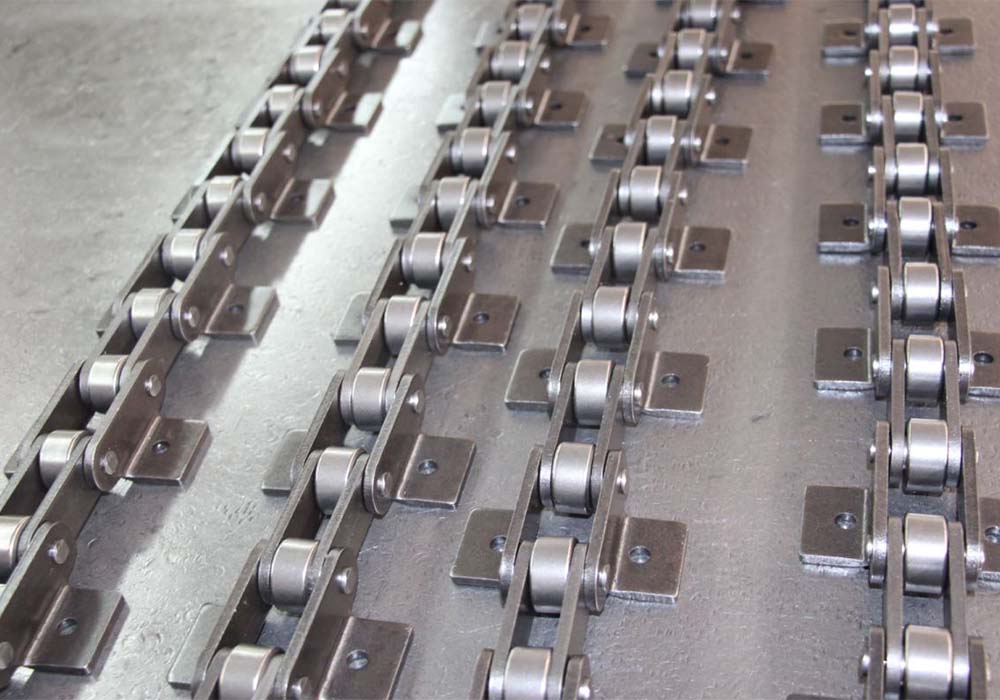

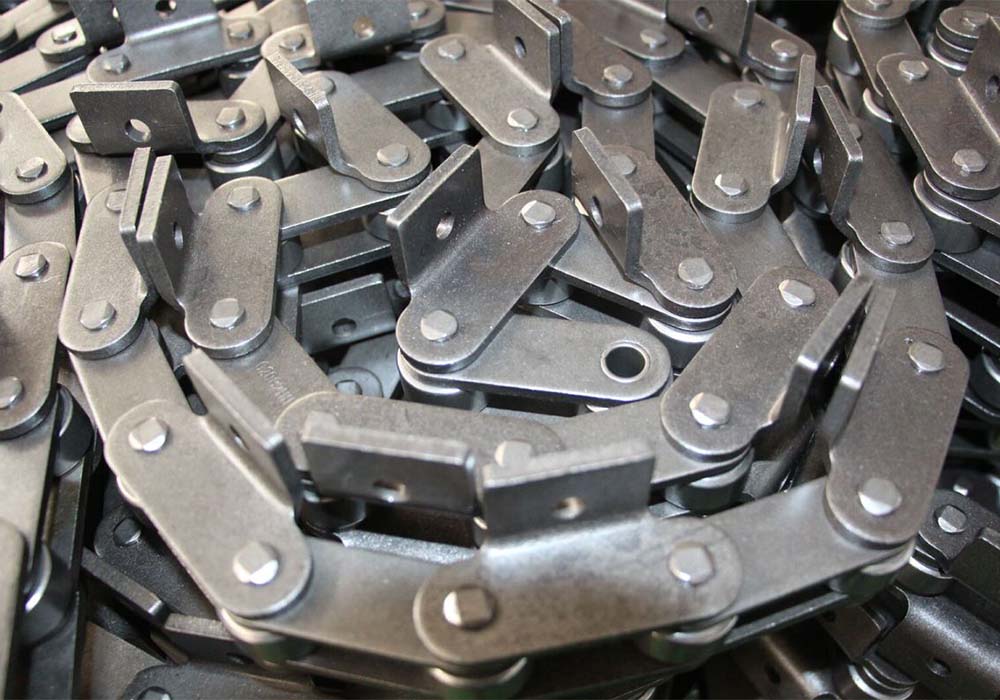

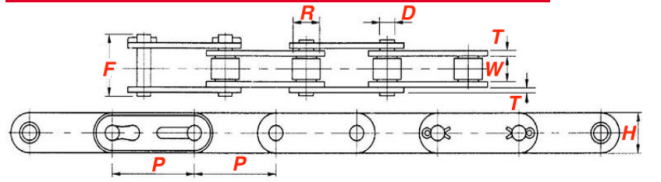

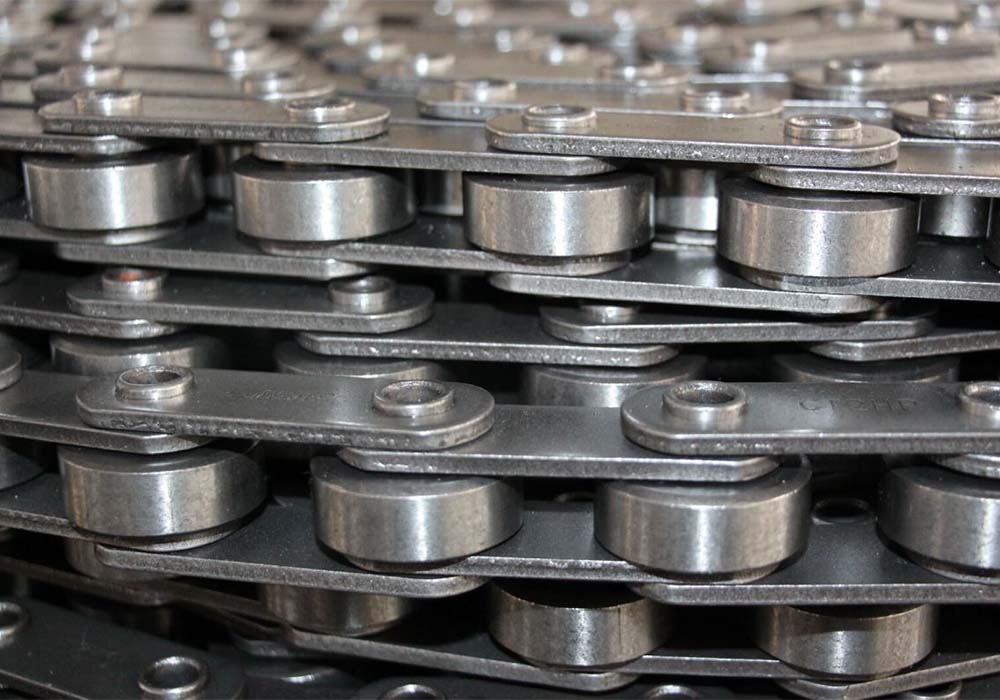

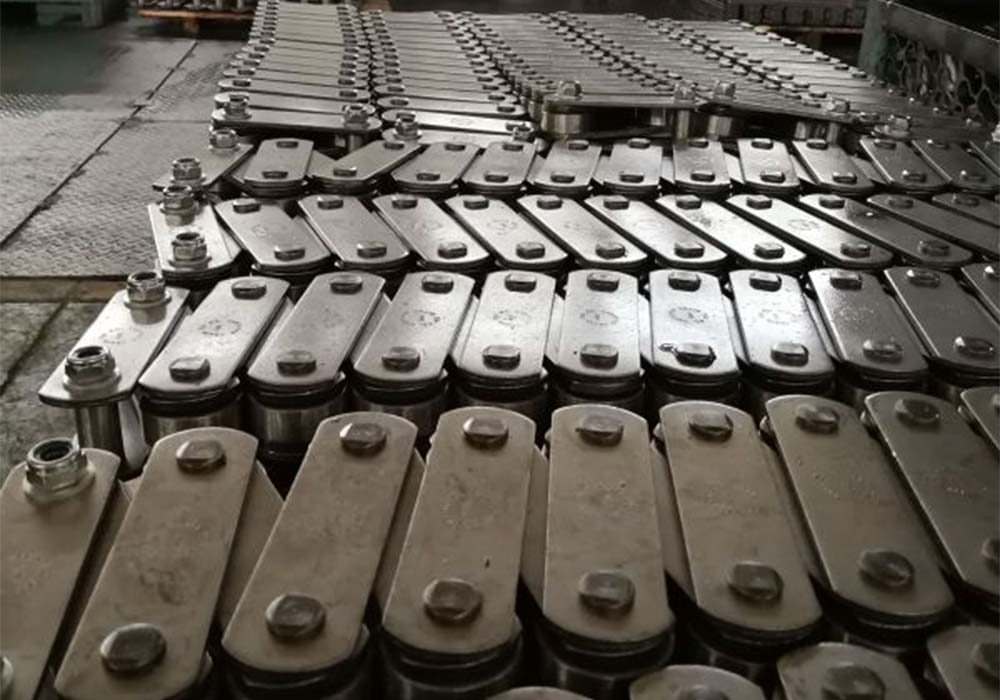

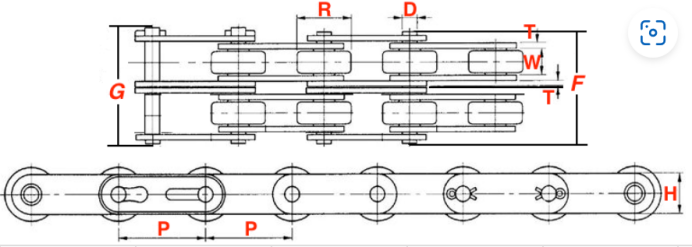

| Gráfico de Tamaño de Cadena de Tipo Transportador de Doble Pendiente | ||||||||
| Tamaño de la Cadena | Paso (P) | (W) | (R) | (H) | (T) | (D) | (F) | Peso |
| C2040 | 1.000' | 0.312' | 0.312' | 0.463' | 0.060' | 0.156' | 0.640' | 0.34 LBS/ FT |
| C2050 | 1.250' | 0.375' | 0.400' | 0.593' | 0.080' | 0.200' | 0.806' | 0.56 LBS/ FT |
| C2060 | 1.500' | 0.500' | 0.469' | 0.683' | 0.093' | 0.234' | 1.172' | 0.76 LBS/ FT |
| C2060H | 1.500' | 0.500' | 0.469' | 0.683' | 0.125' | 0.234' | 1.172' | 1.01 LBS/ FT |
| C2080H | 2.000' | 0.625' | 0.625' | 0.935' | 0.156' | 0.312' | 1.398' | 1.67 LBS/ FT |
| C2100H | 2.500' | 0.750' | 0.750' | 1.121' | 0.187' | 0.375' | 1.666' | 2.42 LBS/ FT |
| C2120H | 3.000' | 1.000' | 0.875' | 1.378' | 0.218' | 0.437' | 2.020' | 3.43 LBS/ FT |
| C2160H | 4.000' | 1.250' | 1.125' | 1.898' | 0.281' | 0.562' | 2.620' | 6.17 LBS/ FT |
| Gráfico de tamaño de cadena de tipo transportador de doble paso | ||||||||
| Tamaño de la Cadena | Paso (P) | (W) | (R) | (H) | (T) | (D) | (F) | Peso |
| C2042 | 1.000' | 0.312' | 0.625' | 0.463' | 0.060' | 0.156' | 0.640' | 0.58 LBS/ FT |
| C2052 | 1.250' | 0.375' | 0.750' | 0.593' | 0.080' | 0.200' | 0.806' | 0.89 LBS/ FT |
| C2062H | 1.500' | 0.500' | 0.875' | 0.683' | 0.125' | 0.234' | 1.172' | 1.46 LBS/ FT |
| C2082H | 2.000' | 0.625' | 1.125' | 0.935' | 0.156' | 0.312' | 1.398' | 2.37 LBS/ FT |
| C2102H | 2.500' | 0.750' | 1.562' | 1.121' | 0.187' | 0.375' | 1.666' | 3.90 LBS/ FT |
| C2122H | 3.000' | 1.000' | 1.750' | 1.378' | 0.218' | 0.437' | 2.020' | 5.43 LBS/ FT |
| C2162H | 4.000' | 1.250' | 2.250' | 1.898' | 0.281' | 0.562' | 2.620' | 9.12 LBS/ FT |
| Tabla de Tamaño de Cadena de Tipo de Accionamiento de Doble Paso | ||||||||
| Tamaño de la Cadena | Paso (P) | (W) | (R) | (H) | (T) | (D) | (F) | Peso |
| A2040 | 1.000' | 0.312' | 0.312' | 0.463' | 0.060' | 0.156' | 0.640' | 0.30 LBS/ FT |
| A2050 | 1.250' | 0.375' | 0.400' | 0.593' | 0.080' | 0.200' | 0.802' | 0.50 LBS/ FT |
| A2060 | 1.500' | 0.500' | 0.469' | 0.683' | 0.094' | 0.234' | 1.000' | 0.70 LBS/ FT |
| A2080 | 2.000' | 0.625' | 0.625' | 0.935' | 0.125' | 0.312' | 1.272' | 1.22 LBS/ FT |
| Gráfico de Tamaño de Cadena de Tipo Transportador Dúplex de Doble Pendiente | ||||||||
| Tamaño de la Cadena | Paso (P) | (W) | (R) | (H) | (T) | (D) | (F) | Peso |
| C2040-2 | 1.000' | 0.312' | 0.312' | 0.463' | 0.060' | 0.156' | 1.270' | 0.68 LBS/ FT |
| C2050-2 | 1.250' | 0.375' | 0.400' | 0.593' | 0.080' | 0.200' | 1.570' | 1.12 LBS/ FT |
| C2060-2 | 1.500' | 0.500' | 0.469' | 0.683' | 0.093' | 0.234' | 1.960' | 1.52 LBS/ FT |
| C2060H-2 | 1.500' | 0.500' | 0.469' | 0.683' | 0.125' | 0.234' | 2.250' | 2.02 LBS/ FT |
| C2080H-2 | 2.000' | 0.625' | 0.625' | 0.935' | 0.156' | 0.312' | 2.810' | 3.34 LBS/ FT |
| C2100H-2 | 2.500' | 0.750' | 0.750' | 1.121' | 0.187' | 0.375' | 3.350' | 4.84 LBS/ FT |
| C2120H-2 | 3.000' | 1.000' | 0.875' | 1.378' | 0.218' | 0.437' | 4.480' | 6.86 LBS/ FT |
| C2160H-2 | 4.000' | 1.250' | 1.125' | 1.898' | 0.281' | 0.562' | 5.320' | 12.34 LBS/ FT |
| Tabla de Tamaño de Cadena Tipo Transportadora Dúplex de Doble Paso | |||||||||
| Tamaño de la Cadena | Paso (P) | (W) | (R) | (H) | (T) | (D) | (F) | (G) | Peso |
| C2042-2 | 1.000' | 0.312' | 0.625' | 0.463' | 0.060' | 0.156' | 1.210' | 1.270' | 1.20 LBS/ FT |
| C2052-2 | 1.250' | 0.375' | 0.750' | 0.593' | 0.080' | 0.200' | 1.510' | 1.570' | 1.80 LBS/ FT |
| C2062-2 | 1.500' | 0.500' | 0.875' | 0.683' | 0.093' | 0.234' | 1.900' | 1.96 | 2.90 LBS/ FT |
| C2062H-2 | 1.500' | 0.500' | 0.875' | 0.683' | 0.125' | 0.234' | 2.252' | 2.358' | 2.96 LBS/ FT |
| C2082H-2 | 2.000' | 0.625' | 1.125' | 0.935' | 0.156' | 0.312' | 2.700' | 2.810' | 4.72 LBS/ FT |
| C2102H-2 | 2.500' | 0.750' | 1.562' | 1.121' | 0.187' | 0.375' | 3.220' | 3.350' | 7.80 LBS/ FT |
| C2122H-2 | 3.000' | 1.000' | 1.750' | 1.378' | 0.218' | 0.437' | 4.340' | 4.480' | 10.86 LBS/ FT |
| C2162H-2 | 4.000' | 1.250' | 2.250' | 1.898' | 0.281' | 0.562' | 5.120' | 5.320' | 18.24 LBS/ FT |

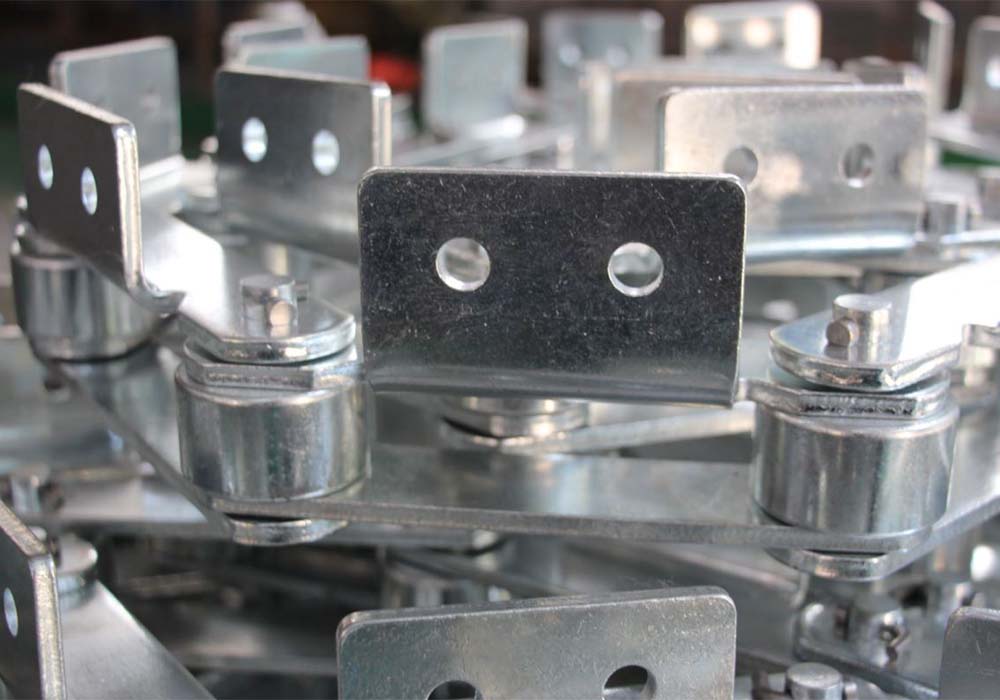

Productos Relacionados
